Application and Operation
TAS 1001 RT – HP 3 IN 1 finishes the welded area of band saw blades 6–54 mm wide and 0.90–1.60 mm thick. Foot-pedal controlled clamping supports blade positioning at the grinding station. The 3-in-1 arrangement also provides back-edge grinding and tooth-gullet finishing.
Key Features
- Foot-pedal blade clamping for positioning and release.

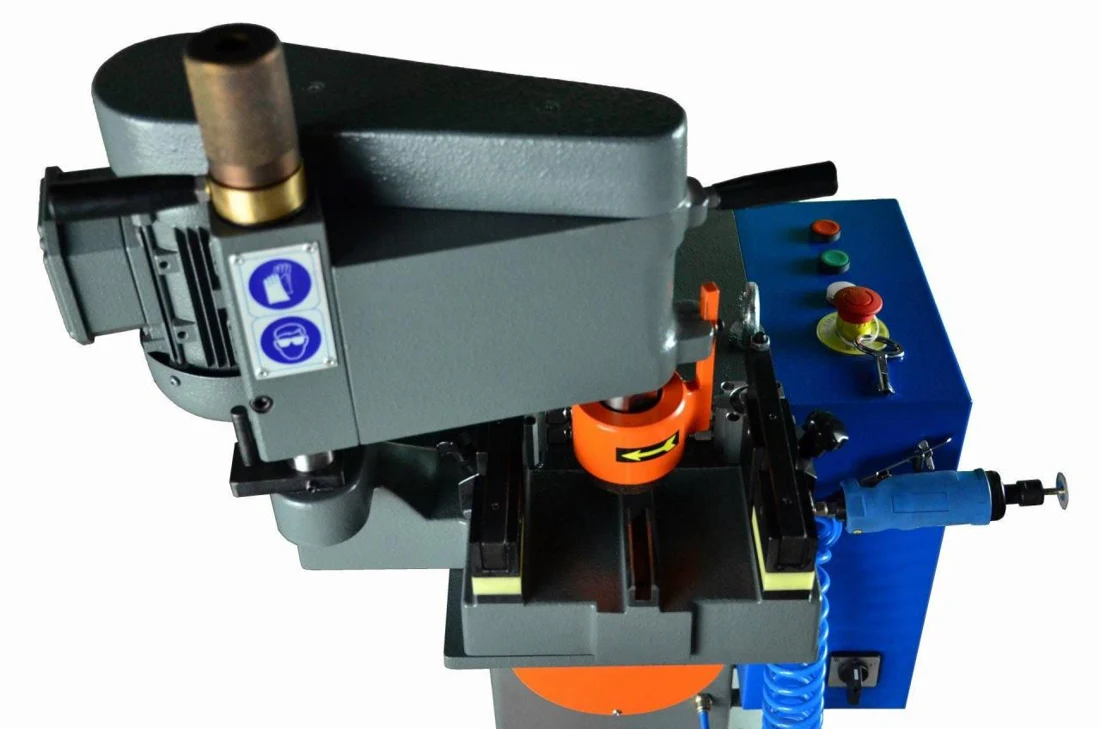

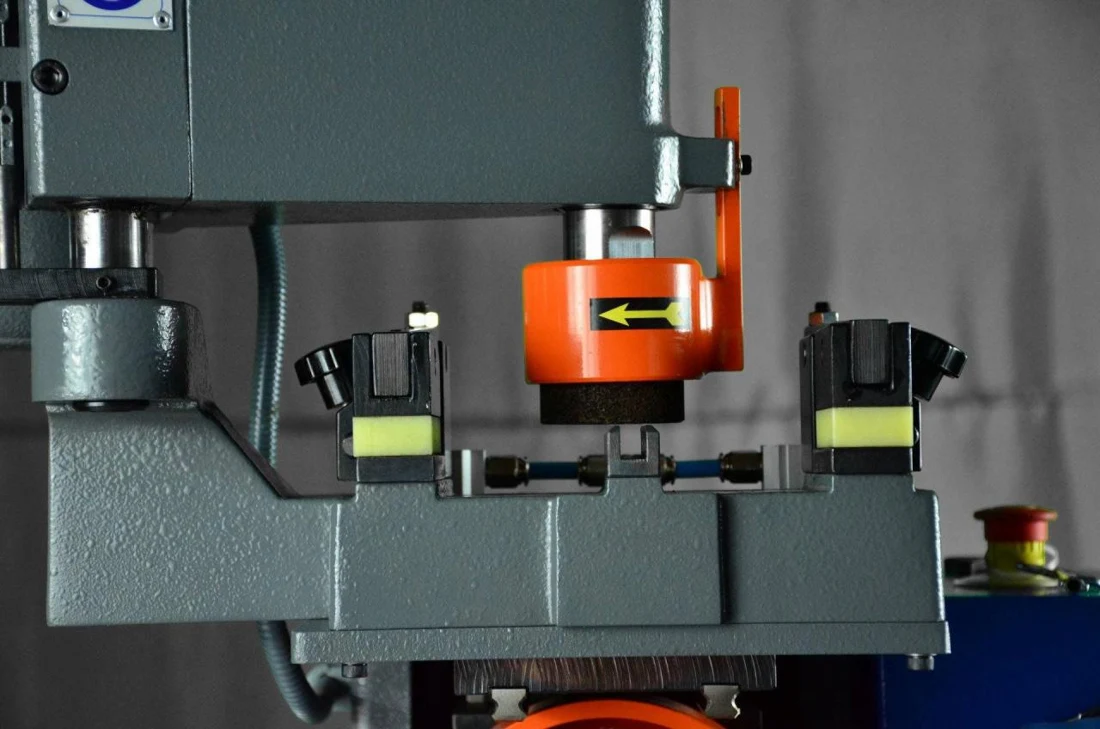

- Hand-controlled rotating grinding head for the weld area.
- Dedicated post-weld finishing station.
- Back-edge grinding controlled by a foot pedal, with the grinding head returning after the operation.

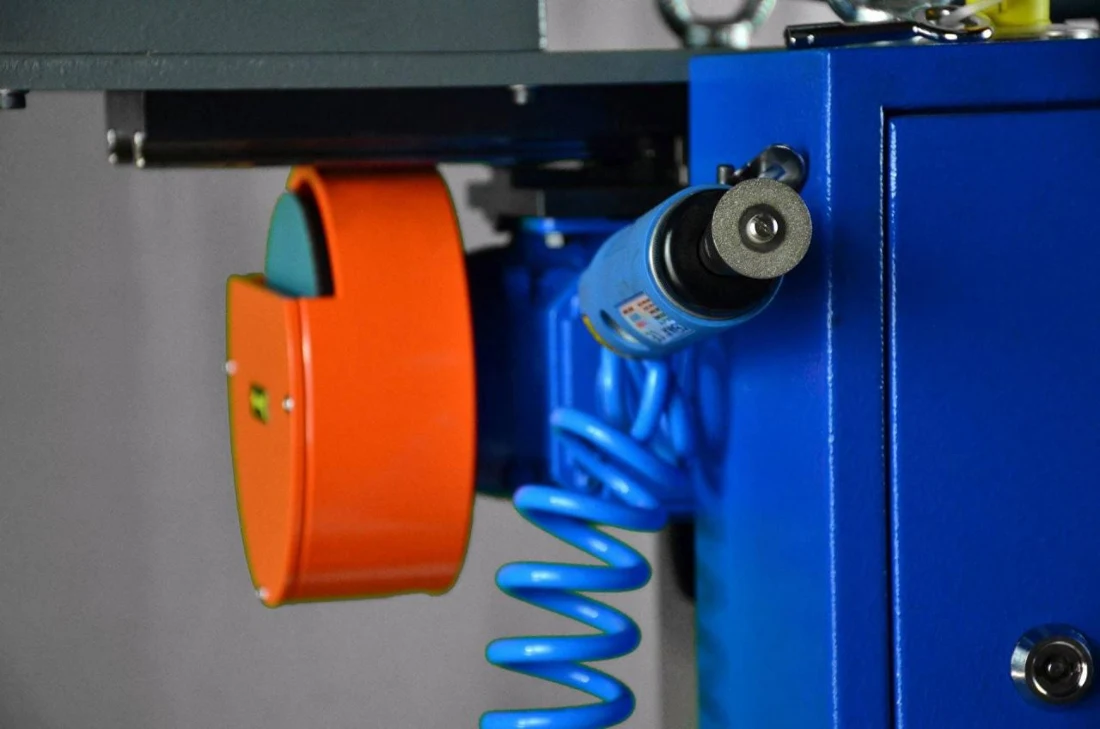

- Hand-operated tool for tooth-gullet finishing.
Options and Accessories
- Grinding-only configuration without the back-edge and tooth-gullet modules is listed as an option.
Options are configuration-dependent. Confirm compatibility and supply scope when requesting a quotation.
Construction and Components
The manufacturer lists the component systems in the technical table below. Confirm the supplied component specification for the ordered machine revision.
Documentation and Application Support
Request the model-specific technical sheet, operating manual and parts documentation for the supplied machine. Include blade or workpiece dimensions, material and production requirements so Temelsan can confirm the configuration, installation requirements and support scope.
