Application and Operation
KN 41 HBS Touch is a touch-screen controlled flash butt welder for band saw blades 6–41 mm wide. Stored blade recipes organize welding-current settings and the welding/annealing workflow for repeated production and blade-service work.
Key Features
- 99 stored blade-size recipes.

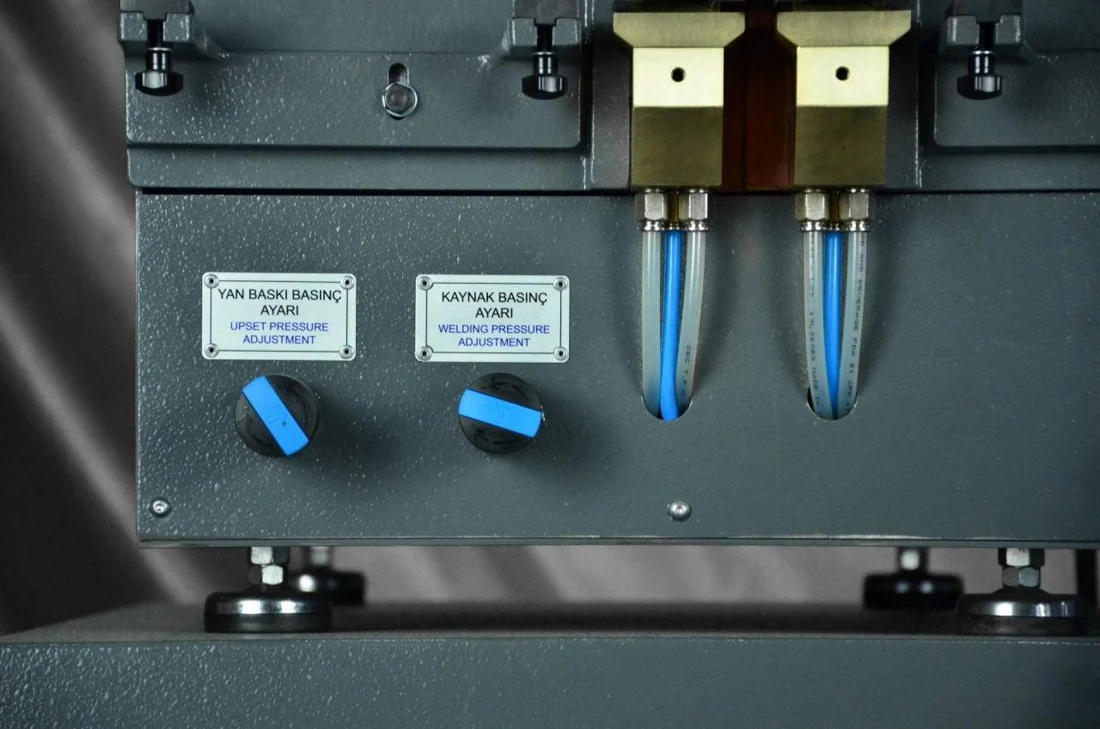

- Manual clamping-pressure regulator with actual and recommended pressure shown on screen.
- Manual upsetting-pressure regulator with actual and recommended pressure shown on screen.
- Welding current selected from the saved recipe.
- Manual jaw-gap adjustment with the recommended gap displayed for the selected blade size.
- More than 110 counters, including separate recipe counters.
- Operator interface brings blade-size settings and process information together.
Options and Accessories
- TSAS pyrometer-controlled annealing: three adjustable temperatures and three times; listed measurement range 300–1300 °C. Standard for HBA and optional for HBS according to the source. Automatic sensor cover and LED work light.
Options are configuration-dependent. Confirm compatibility and supply scope when requesting a quotation.
Construction and Components
The manufacturer lists the component systems in the technical table below. Confirm the supplied component specification for the ordered machine revision.
Documentation and Application Support
Request the model-specific technical sheet, operating manual and parts documentation for the supplied machine. Include blade or workpiece dimensions, material and production requirements so Temelsan can confirm the configuration, installation requirements and support scope.
