Application and Operation
DK 6000 is a block & plate band saw for industrial metal cutting, with a listed maximum cutting height of 600 mm and throat size of 1000 mm. Its blade-guidance, table and drive configuration can be selected around the material, workpiece dimensions and production workflow.
Key Features
- Servo Motor Controlled Cutting Speed
- 3 x 600 mm Aluminum flanged, tapered bandwheels with rubber tires
- Upper wheel adjustment up to 100 mm
- Operation control on kiosk
- One set of Hydraulic saw guide blocks with carbide backup for chosen bands
- One set of metal saw guide inserts for chosen bands
- Hydraulic Lift Roller Table
- Motorized Band Blade Brush
- Work light
- Automatic Hydraulic Bandsaw Tension Unit
- Automatic Chip Conveyor
- Saw blade guards
- Band door interlocks
- Variable frequency band drive
- Automatic Post Elevating By Servo Motor
- One (1) complimentary Bi Metal saw blade
- Operation and parts documentation listed by the manufacturer
- Stop Running upon Bandsaw Break
- Bandsaw Speed Indicator
- Blade Deviation Monitoring
- Hydraulic Oil Level Monitoring
- Hydraulic Oil Temperature Monitoring
- Emergency Stop Buttons
- Temelsan Torque Control for Surface Quality
- Temelsan Current Control For Longer Blade Life
- 19" HMI Sensitive Touch Screen Monitor
- Proximity Sensor
- Three Linear Guide System
- Motorized Blade Change System
- Three Different Coolant Liquid Pump
- Two Different Hydraulic Pump
- Tool Kit
Options and Accessories
- DKO-SMST — Standard Manual Secondary Table for DK 6000: Additional manually operated secondary table, listed at 2000 × 7500 mm for DK 6000.
- DKO-HTST — High-Tech Secondary Table for DK 6000: Secondary loading table, listed at 2300 × 7500 mm with four hydraulic lift units for DK 6000.

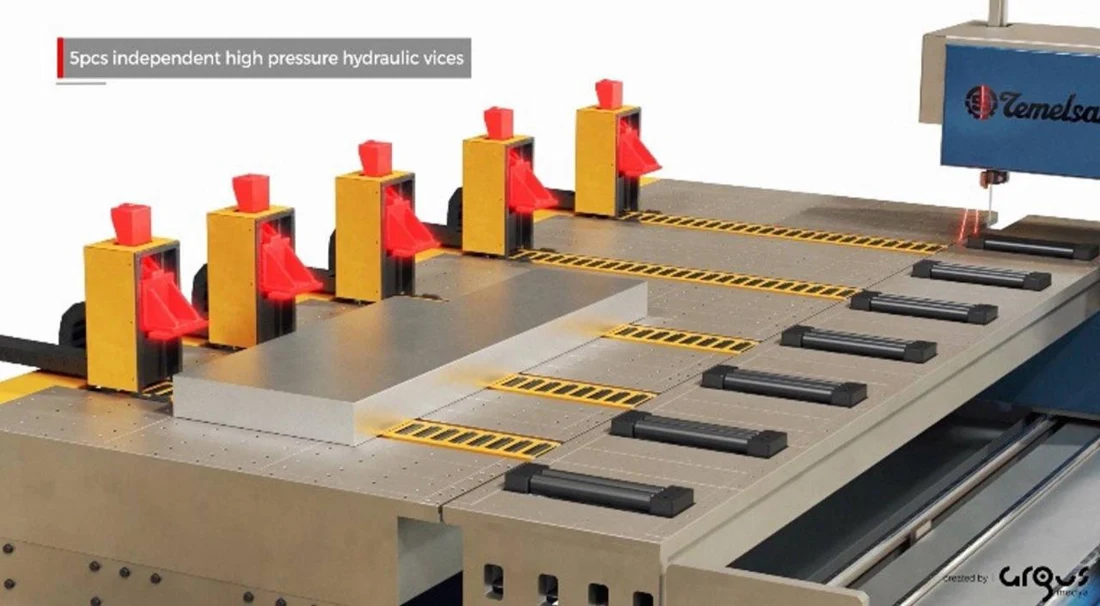

- DKO-STLB — Secondary Table Servo Motion and Hydraulic Clamping Block ( Min 2 PCS ): Servo-driven material feed and hydraulic clamping blocks; minimum two units. Supports automatic material referencing and holds the workpiece during cutting.
- DKO-PS — Proximity Sensor: Proximity sensing for rapid approach followed by cutting feed.
- DKO-CL — Band Mist coolant system: Mist lubrication/cooling of the saw band during cutting.
- DKO-PDSS-5+ — Pilz Door Safety System 5+ Doors: Pilz door safety system; door configuration and applicable safety documentation must be confirmed for the supplied machine.
- DKO-LCL — Laser for Cutting Line: Cutting-line laser for positioning the workpiece; laser colour is subject to supply configuration.
- DKO-SOTT-4/6 — Set-up and Training for DK 4000 and 6000 Type Bandsaw Machines: On-site operator setup and maintenance training. The source describes three working days; scope, travel and schedule are confirmed in the quotation.
- DKO-DMPA — Different Motor Power Applications: Alternative motor power within the machine design limits; confirm the required rating before quotation.
- G-DVA — Different Voltage Application: Alternative electrical supply configuration. The source lists 380 V AC as standard; confirm the destination supply and ordered configuration.
Options are configuration-dependent. Confirm compatibility and supply scope when requesting a quotation.
Construction and Components
The manufacturer lists the component systems in the technical table below. Confirm the supplied component specification for the ordered machine revision.
Documentation and Application Support
Request the model-specific technical sheet, operating manual and parts documentation for the supplied machine. Include blade or workpiece dimensions, material and production requirements so Temelsan can confirm the configuration, installation requirements and support scope.
