Application and Operation

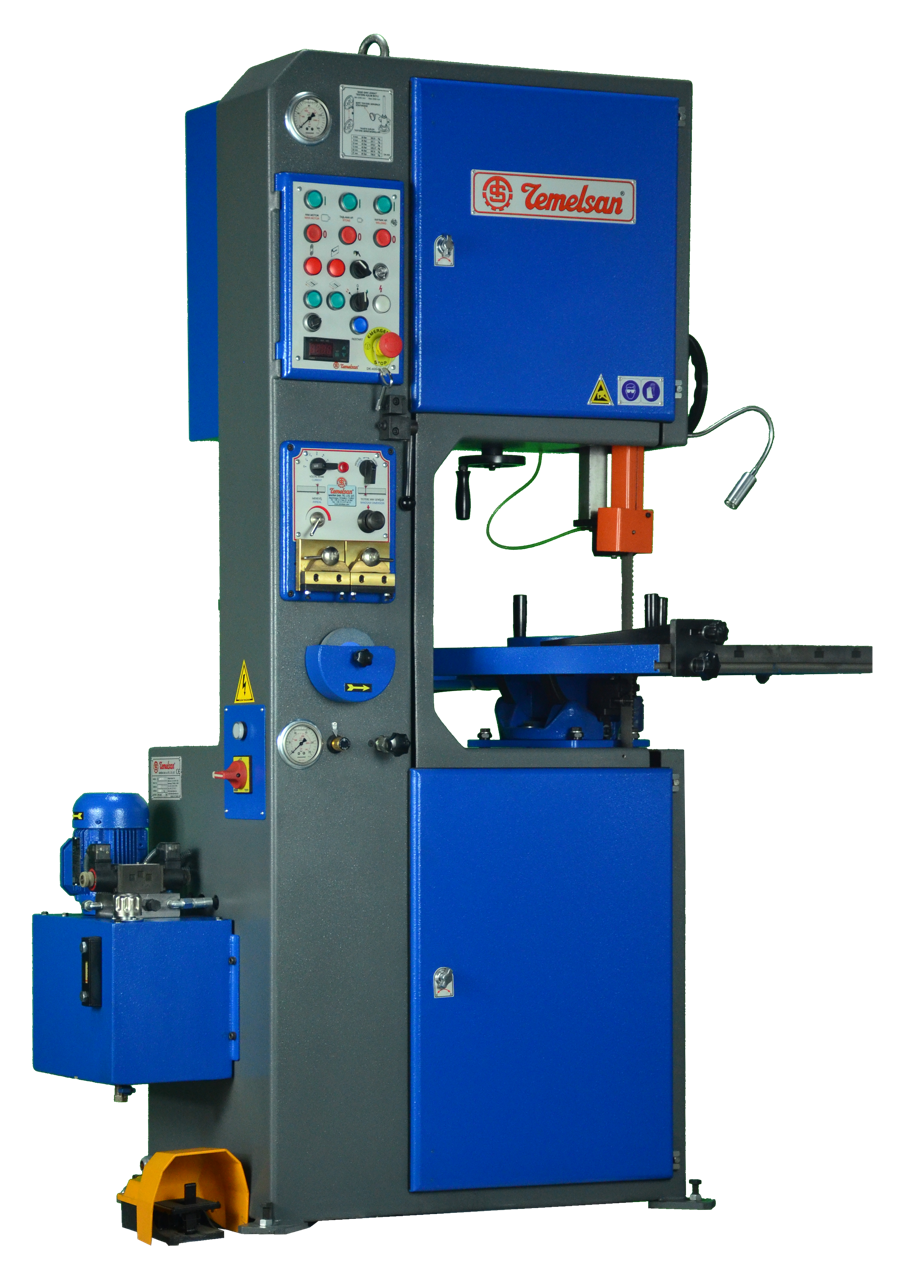

DK 400 XL is a vertical contour band saw for industrial metal cutting, with a listed maximum cutting height of 400 mm and throat size of 400 mm. Its blade-guidance, table and drive configuration can be selected around the material, workpiece dimensions and production workflow.
Key Features
- Fixed Table
- 2 x 400 mm Aluminum flanged, tapered bandwheels with rubber tires
- Upper wheel adjustment up to 76 mm
- Operator controls mounted on column

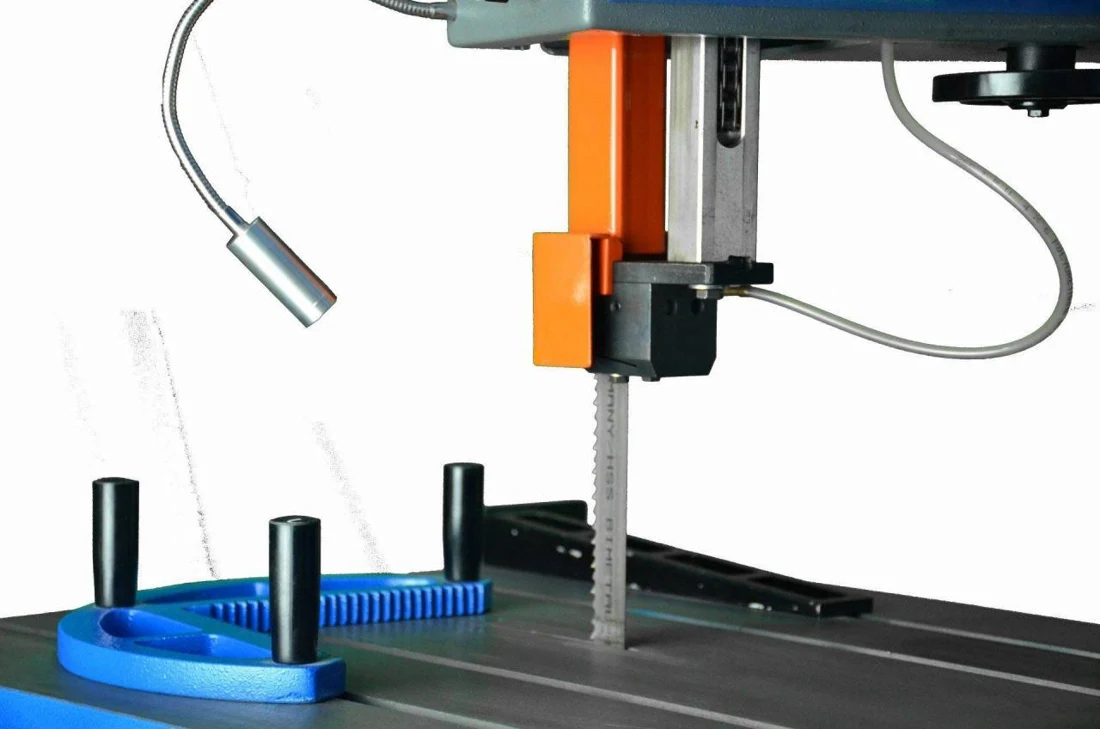

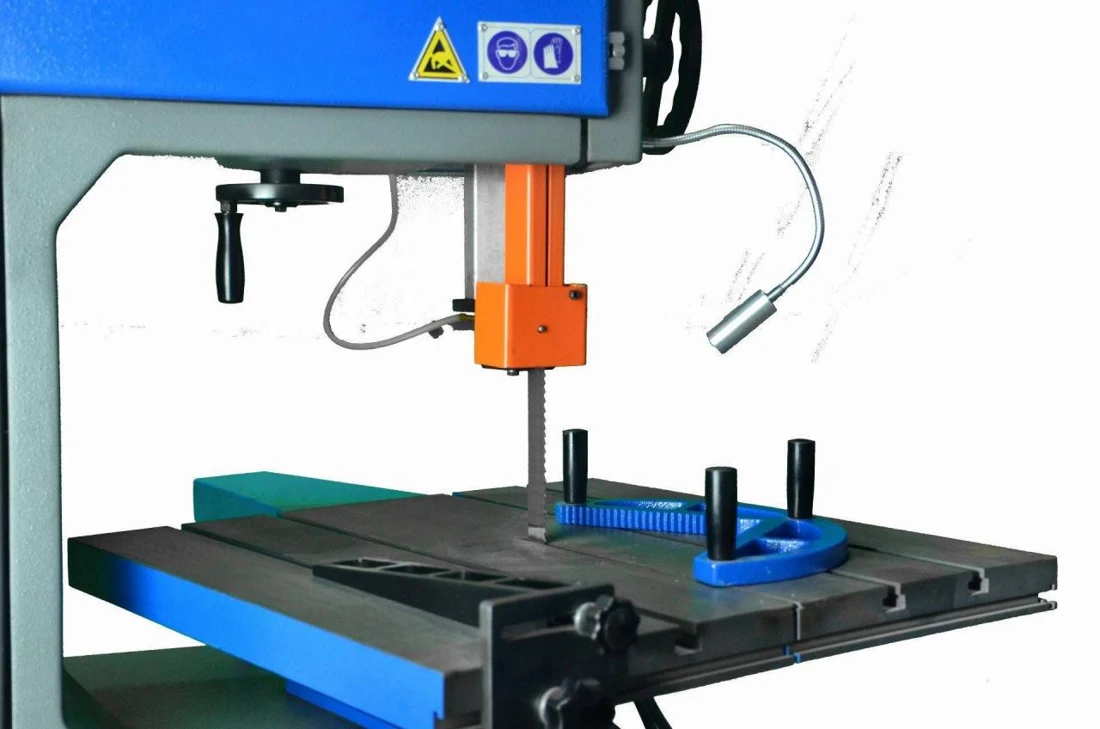

- One set of saw guide blocks with carbide backup for bands 6 mm to 27 mm
- One set of metal saw guide inserts for chosen bands
- Band wheel brush
- Work light
- Manual bandsaw tension with pressure gauge indicator
- Saw blade guards
- Band door interlocks
- Rip Fence for width adjustment
- Post Elevating Hand Wheel
- One (1) complimentary Bi Metal saw blade
- Operation and parts documentation listed by the manufacturer
- Stop Running upon Bandsaw Break

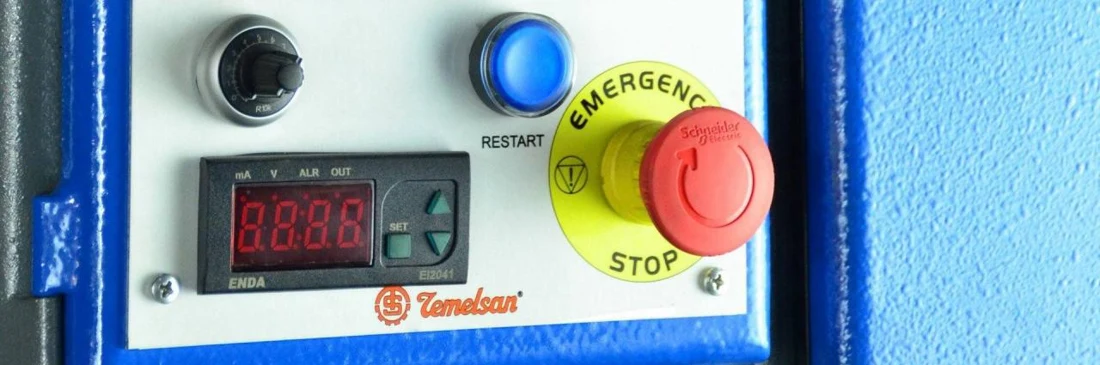

- Emergency shut-off buttons
Options and Accessories
- DKO-FIBD-4 — Variable frequency band drive: Frequency-inverter blade drive for adjustable speed to suit the workpiece.
- DKO-HMT-4 — Hydraulic Motion Table: Hydraulic table feed with adjustable cutting speed and travel limit switches; workpiece clamping is required.
- DKO-HBTU — Hydraulic Bandsaw Tension Unit: Automatic hydraulic blade tensioning; on contour models this requires the hydraulic motion table option.
- DKO-MST-4 — Manual Sliding Table: Manual forward/backward sliding table.
- DKO-PLC — PLC Control Unit: PLC control with a 7-inch touch-screen HMI instead of the basic push-button/contactor control.
- DKO-CL — Band Mist coolant system: Mist lubrication/cooling of the saw band during cutting.
- DKO-CAP — Chip Absorption Pipe: Chip-extraction pipe connection for a suitable vacuum collection system.
- DKO-LWCS-C-4 — Liquid Wet Cutting System For Counter Bandsaws: Liquid coolant system for wet cutting; configuration depends on the saw type.
- DKO-PDSS-4 — Pilz Door Safety System up to 4 Doors: Pilz door safety system; door configuration and applicable safety documentation must be confirmed for the supplied machine.
- DKO-SAWL — Semi-Auto Welding Shop Unit: Integrated semi-automatic blade welding and grinding workshop unit.
- DKO-CM — Chain Mechanism For Material Holding: Chain mechanism for holding the material.
- DKO-WHJ — Workpiece holding jaw with handles: Manually operated workpiece holding jaws.
- DKO-LCL — Laser for Cutting Line: Cutting-line laser for positioning the workpiece; laser colour is subject to supply configuration.
- G-WP — Boxing for overseas shipment ( Y-PACK Wooden Box ): Wooden export packing case (Y-PACK).
- DKO-SOTT — Set-up and Training for Counter, XL and LS Type Bandsaw Machines: On-site operator setup and maintenance training. The source describes three working days; scope, travel and schedule are confirmed in the quotation.
- DKO-DMPA — Different Motor Power Applications: Alternative motor power within the machine design limits; confirm the required rating before quotation.
- G-DVA — Different Voltage Application: Alternative electrical supply configuration. The source lists 380 V AC as standard; confirm the destination supply and ordered configuration.
Options are configuration-dependent. Confirm compatibility and supply scope when requesting a quotation.
Construction and Components
The manufacturer lists the component systems in the technical table below. Confirm the supplied component specification for the ordered machine revision.
Documentation and Application Support
Request the model-specific technical sheet, operating manual and parts documentation for the supplied machine. Include blade or workpiece dimensions, material and production requirements so Temelsan can confirm the configuration, installation requirements and support scope.
